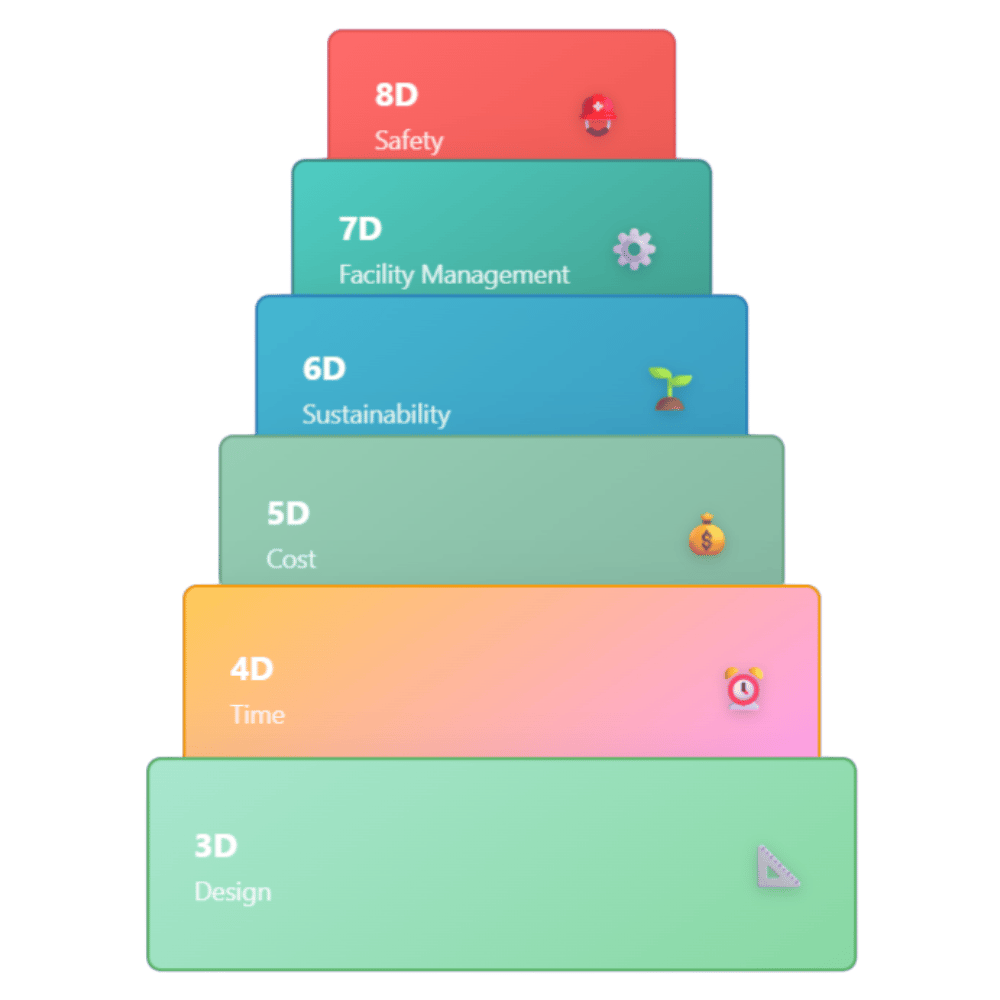

Most AEC professionals today are familiar with 3D models enriched with time (4D) and cost (5D) data. But as sustainability, lifecycle value, and safety become non-negotiables in construction, Building Information Modeling (BIM) is evolving into higher dimensions. These additional dimensions: 6D, 7D, and 8D extend the impact of BIM far beyond design and construction, transforming it into a tool for long-term project success.
6D BIM: Embedding Sustainability into the Model
6D BIM is dedicated to energy performance, environmental impact, and carbon analysis. It allows project teams to analyze and reduce a building's environmental footprint directly within the BIM environment.
A practical example is carbon footprint estimation: by multiplying material quantities from the model by known emission factors (e.g., kg CO₂ per m³ of concrete), teams can generate project-wide CO₂ calculations. Similarly, by integrating energy simulation outputs, 6D BIM can provide insights into heating, cooling, and lighting performance.
Modern workflows allow sustainability attributes, such as embodied carbon values or energy benchmarks, to be embedded directly into model elements. This enables automated sustainability reporting, essential for green building certifications and meeting ESG targets.
7D BIM: Facilitating Lifecycle Management
Once construction is complete, the BIM model shouldn’t be archived; it should live on as a digital twin. 7D BIM ensures that facility management teams can use the model to operate and maintain the asset efficiently.
A 7D model includes:
- Maintenance schedules
- Equipment specifications
- Warranty information
- Operational manuals
This information is linked directly to model elements, so a facilities manager clicking on an HVAC unit can instantly access its service history and upcoming maintenance tasks. The result is reduced downtime, lower maintenance costs, and a better long-term ROI for asset owners.
8D BIM: Planning for Safety
Safety is one of the most critical aspects of any construction project. 8D BIM focuses on enhancing safety planning and risk mitigation by integrating safety data into the model.
For example:
- Hazard zones can be highlighted in the model.
- Safety protocols (e.g., fall protection requirements) can be linked to specific components.
- Visual simulations can identify safer construction sequences before work begins.
This proactive approach enables teams to anticipate and mitigate risks in the planning phase, rather than reacting to them on site. It also supports compliance with safety standards and reduces incident rates.
From Data to Decisions
By extending BIM into 6D, 7D, and 8D, construction firms gain powerful new tools to address real-world demands: climate responsibility, asset performance, and worker safety.
These dimensions aren’t just buzzwords; they're data-driven strategies that help deliver:
- Greener buildings
- Smarter operations
- Safer jobsites
As BIM technology matures, firms that embrace these advanced dimensions will stand out, not only for how they build, but for how they think long-term.
